F-2000 Nessie Jr.
| F-2000 Nessie Jr. Miniature version of - [hakofune] reference. Resonance tube speaker of 2m in height | |
| Basic data | |
| Cutting China plywood +1 ..price *.. | 28,560 yen |
| Unit two ..price *.. | 33,976 yen |
| Other necessity three ..cost *.. | 5,000 yen |

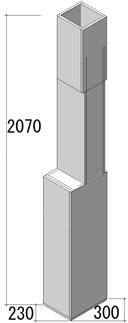

| Size |  2070mm in length �~230mm in width �~300mm in depth |
| Nagaoka [tetsuotoko] recommendation unit | FE168E��+FT17H |
| Production four ..difficulty *.. | 5 |
| Reference drawing 1 | Latest speaker craft �B of Nagaoka [tetsuotoko] |
| Reference drawing 2 | Speaker construction complete map side collections �A of Nagaoka [tetsuotoko] |
 Reference drawing 3 | Original speaker design art specialedition drawing [atsumahen] �U of Nagaoka [tetsuotoko] |
| Sound road data | Sound road structural data of Nagaoka backing loading |
Frequency response | |
| Installing | |
Comment on Oyama | |
| As many as 3m in height is a huge speaker in reference speaker Nessie F-3000 of [hakofune] that reaches and the Jr version (Still, about 2m in height) in the ordinary family at all because it is impossible. It seems that clamping and the assistant of a moderate space and considerable number are necessary for production. | |
- 1The plywood price is addition of the necessary plywood price (China plywood) and the cutting price referring to the price list of the Tokyu Hands Shinjuku branch. Please think to the end at the reference level (As of October, 2006).
- 2For the unit, the one that the price in the Koizumi wireless was examined on the net is a reference. Please think at the reference level because this is the one with the possibility of the change of the price etc. (As of October, 2006).
- 3It is assumed 5000 yen with other cost chiefly adding up the coil capacitor, the woodwork bond, [onimenatto], and the woodwork tool, etc. for a terminal, internal wiring, the [fasuton] terminal, and the network.
- 4It divides into five stages, and it is a production difficulty that it is the easiest and five is most difficult of one. It is subjective what written based on the complexity and the experience of the size and the structure of the speaker that Oyama actually made.
