Speaker pursuit road > the D-101S super-Swan top >
Naked characteristic of FE108ES2
Does backing loading horn how do and earn a low region?
Basal condition + MDF cabinet + FE108ES �U
It is a mechanism of backing loading horn though is too unrelated to the sound in super-Swan this time. Let's write which band backing loading horn shoulders.
Only the unit specially measured f first detaching the unit from supermarket Swan. It is considerably different from the characteristic written in the manual. The manual is measured because of the characteristic in which it puts in JIS box (huge sealing up box) and the turn crowding in a low region is adjusted to 0 it is natural.

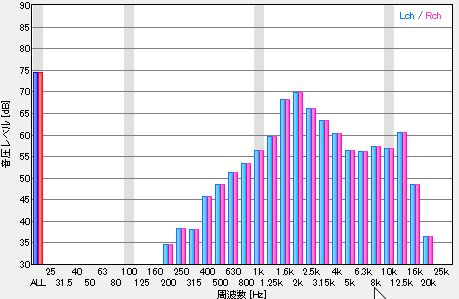

�@Naked characteristic of FE108ES2
�AMeasurement that puts FE108ES2 in super-Swan
And, it measures it of �A's putting the unit in [su-pasusuwan] (backing loading horn box). If the horn is applied to the one that the turn crowding in a low region was subtracted from the characteristic of �@(Become the characteristic of the manual), it becomes the characteristic of �A if it writes the super-roughly. I think that whereabouts the horn shoulders is understood well.
 |
| D-101SSuperSwan |
