D-10 Buckie equipped with FE108E��

China plywood cabinet [ Clear urethane painting ] + basal condition + FE108E��

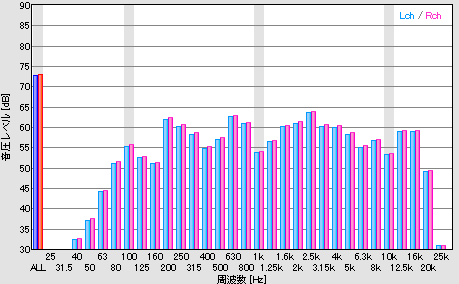

  D-10 Buckie equipped with FE108E��

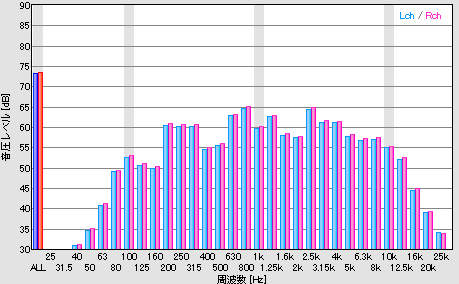

  D-10 Buckie equipped with FE-103E


  Measurement that installs over dumping unit FE108E�� of fostex. The characteristic above is a characteristic of FE108E��. Characteristic of FE103E measured when the under first auditions. As for the efficiency of the total, it is obviously almost understood well that FE108E�� has expanded in both low regions and high regions though it is changeless. 4db rises by about 2db and 63db in 50hz. Flat in 108E�� though 103E is a characteristic of ..10khz body.. fall even of 16khz 20khz understands maintenance more remarkably than a low region at considerably high levels the expansion of a high region the sound pressures. This is a level to which the difference can be clearly recognized even by the audibility, and in the meaning like the expansion of the cooking stove and the increase of resolution and volume of information, etc. , the effect of the tone quality improvement is almost correct.

D-10backie
