Speaker pursuit road > Nagaoka iron man nature model 15 the top >
D-10 Buckie
| D-10 Buckie Short horn backing loading of - popular | |
| Basic data | |
| Cutting China plywood +1 ..price *.. | 15,842 yen |
| Unit two ..price *.. | 17,072 yen (FE108E��) |
| Other necessity three ..cost *.. | 5,000 yen |
| Size |  580mm in length �~180mm in width �~370mm in depth |
| Nagaoka [tetsuotoko] recommendation unit | FE108S |
| Nagaoka [tetsuotoko] recommendation unit 2 | FE108E�� |
| Nagaoka [tetsuotoko] recommendation unit 3 | FF125K |
| Nagaoka [tetsuotoko] recommendation unit 4 | FE103E |
| Production four ..difficulty *.. | 2 |
| Reference drawing 1 | Art �A of Nagaoka [tetsuotoko] of original speaker design |
| Reference drawing 2 | fostex spekaer craft manual vol.1 |
 Reference drawing 3 | Original speaker design art specialedition drawing [atsumahen] �T of Nagaoka [tetsuotoko] |
| Sound road data | Sound road structural data of Nagaoka backing loading |

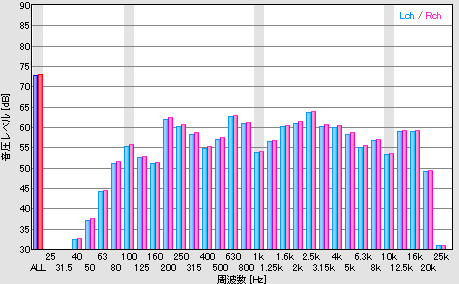

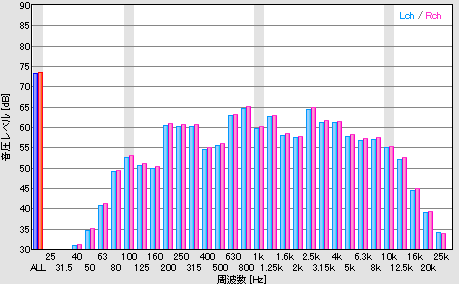

Frequency response | |
D-10 Buckie equipped with FE103E D-10 Buckie equipped with FE108E��  | |
Comment on Oyama | |
| It is very popular in a lovely design in Nagaoka master's speaker. If the sound uses 108E��, it can enjoy the sound of a considerably real backing loading, and very recommended 1 in the beginner from an easy thing to produce. A little large nature for the book shelf is done. The device is somewhat needed for how to put it. (The speaker stand is necessary. ) | |
- 1The plywood price is addition of the necessary plywood price (China plywood) and the cutting price referring to the price list of the Tokyu Hands Shinjuku branch. Please think to the end at the reference level (As of October, 2006).
- 2For the unit, the one that the price in the Koizumi wireless was examined on the net is a reference. Please think at the reference level because this is the one with the possibility of the change of the price etc. (As of October, 2006).
- 3It is assumed 5000 yen with other cost chiefly adding up the coil capacitor, the woodwork bond, [onimenatto], and the woodwork tool, etc. for a terminal, internal wiring, the [fasuton] terminal, and the network.
- 4It divides into five stages, and it is a production difficulty that it is the easiest and five is most difficult of one. It is subjective what written based on the complexity and the experience of the size and the structure of the speaker that Oyama actually made.
The subsequent page is a toll waiter type backing loading and D-100 of popular.
