Tools of love of woodwork Otaku Oyama

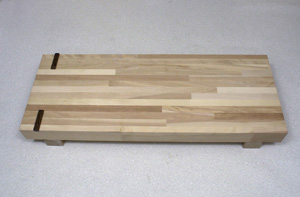

Worktable

It sits and the woodwork stand to work. It is a stand of considerably heavy custom-designed.

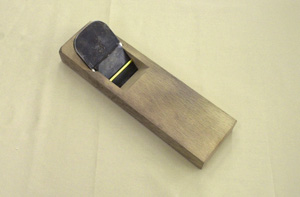

Inside finish plane

There is no one as convenient as this when the plane masters the usage once by the one indispensable though the exquisite woodwork is made. It becomes an enormous page when skill explains the usage of this plane of the necessity (I am not perfect either still) to master it perfectly and refer to "Introduction to the woodwork tool" as a recommended book for interesting one, please. The usage of the plane is being written even by amateur's person comprehensible.

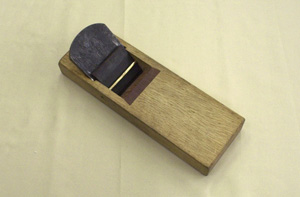

Finish plane

A kind of same [hirakanna] as plane above. Fixed price about 50,000 : this plane. Even if it is the lowest, you should buy the one of about 10,000 yen because it can use the one of about 3000 yen sold in the do-it-yourself store through life if it buys it because it is not good.

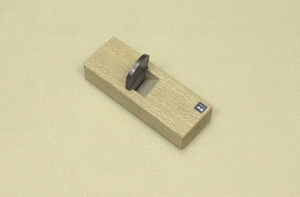

Straight [shi] plane of stand

Plane to cut down the lower side of plane. As a result, the plane can be used by cutting down the bottom of the plane (respect where the blade has adhered). In mastering a real plane, "Bottom rule" and "Money board and whetstone" introduces this "Straight [shi] plane of the stand" and under are needed.

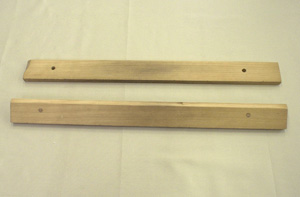

Bottom rule

This is thought that the straight line of totally flat has gone out if light doesn't leak seeing two repeatedly. It appropriates to the bottom side of the plane (district of which the tip of the blade has gone out), and [kannadai] is adjusted. It is possible to use it to check whether the bottom is flat after the speaker is completed.

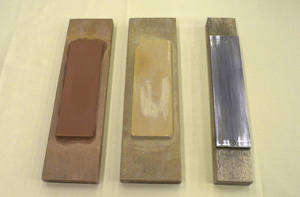

[Kaneita] and whetstones

Thing to sharpen blade of plane and blade of chisel. Two kinds or more (the medium whetstone and the finish whetstone) are necessary for the whetstone. [Kaneita] uses the other side of cutlery for the plane to make it.

Other planes

Various planes are in a round plane, the outside round plane, the cutting side plane, and cutting in the plane at the case and the chamfering plane according to the turning over plane, the spokeshave, and the usage. The machining is good after all, the tradition tool is good though the chance of use is being missed recently of the main current when it is.

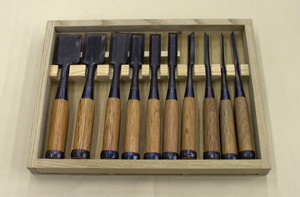

Chisel(drinking)

Set of chisel. When the one of complex shape is occasionally made, it variously finds it useful though it never uses almost in the Nagaoka teacher's speaker construction. If [zai] is beaten, it becomes a clue that indirectly knows the sound of the speaker enclosure.

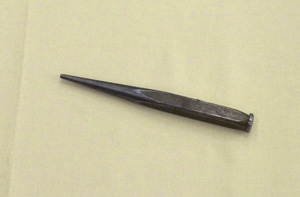

Nail occupying

The one to use driven nail because it can be more deeply depressed. The point is put on the head of a nail, it beats with the hammer while making it not shift by the little finger, and it uses it.

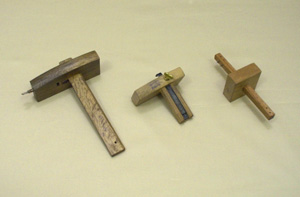

Marking gauges

Woodwork tool used to draw line of [zai] and parallel. [Sujike] [hi] coming, [kamake] [hi] coming, and drinking marking gauge from the left. When the construction industry is done by the hand processing, it chiefly uses it. It finds it useful when is it is possible to settle about the Nagaoka type speaker.

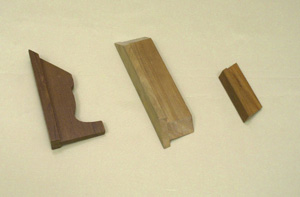

Rules

Treatment device used when cutting in 45 degrees or processing it with chisel.

Saws (saw)

Traditional saw for hand processing. Crosscut and [tatehi] coming and double-edged [noko] and levee [hi] coming [noko] from on. I am having such hand [noko], [shukanna], and the chisel used as much as possible to know the character of "Material" better though it often relies on the machining now and it doesn't use it frequently.

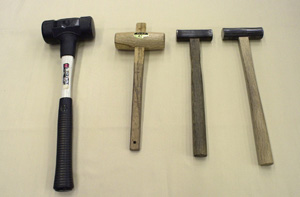

Hammers

The handle of the rightmost hammer that was reflected in the photograph was made by oneself. Somewhat, the workman has the hammer that exists in my hand by himself/herself. The rubber hammer and the hammer to be able to do the point by rubber are used so as not to damage the material.

Right-angled quality of timber used stand

It uses it to cut down the quality of timber used part of wood at right angles with a plane part. All of the each vicinity are squarely made. [Hamideta] [zai] is shaved off right with a finish plane in the finish plane.

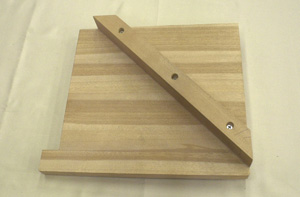

Stop quality of timber used stand

The quality of timber used of [zai] is used for 45 degrees to cut down. The usage : as well as the right-angled quality of timber used stand.
