Processing of taper to baffle
The taper processing is applied to the baffle because the pipe resonance sound is generated by the length of board thickness and a low region from the back of the unit might be influenced harmfully. It is likely do not to have to worry too much if board thickness is about 15mm, and the change is confirmed for the plywood of the D-55 21mm two class in thickness piling. The under is an image chart.
 | �� |  |
The easiest method is to apply the taper with the money file. This method can be easily done though takes time.

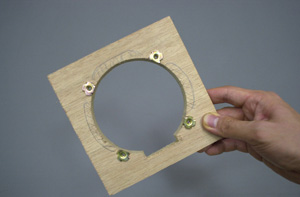

 | The mark is put to the part shaved off with the pencil. |

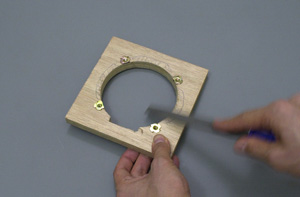

 | It takes it rubbing with the money file. |

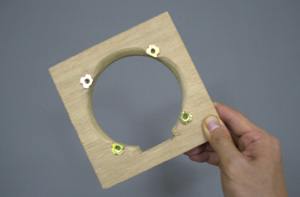

 | When the nut with the fingernail is used, you should decide the position first. |

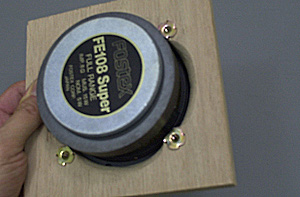

 | When you install the unit |
I do by handling the trimmer and the trimmer table now. Please look here to be [choi] about the way though it is blind.
