Speaker pursuit road > the example of producing Nagaoka [tetsuotoko] speaker top >

Production 2 of D-88 super-flamingo

11

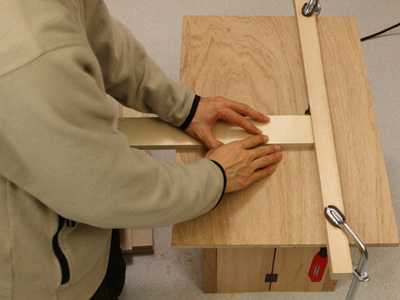

	When the edge material can be used, be adjusted so that R may become half of board thickness ,in a word, 7.5mm to the trimmer stand, and the trimmer be set well, the trimmer is put on the table and both sides of the back.
12

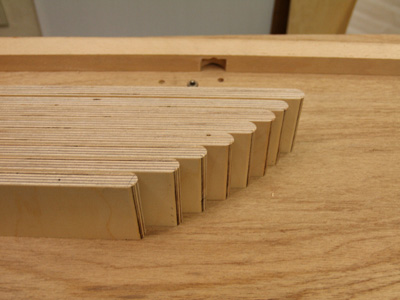

	Perfect R was able to be taken. Time that work that it seems to take half a day hung thanks to the trimmer, too is about ten minutes when doing with [yasuri] in the hand work.
13

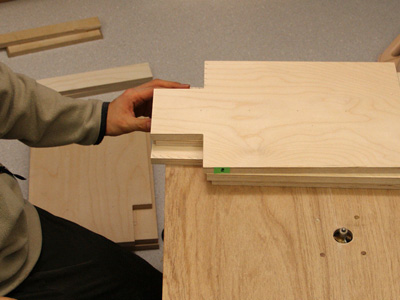

	R in the sound road part removes [keduri] as a trimmer without destroying the set trimmer stand continuously the riot of the adhering part.
14

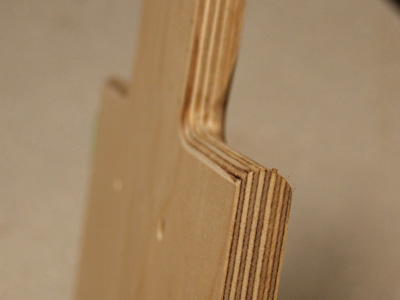

	..part.. [gade] that has cut down too much a lot by about 2mm though it was possible to do almost perfectly. Here will be buried with the [nini] patty while assembling it.
15

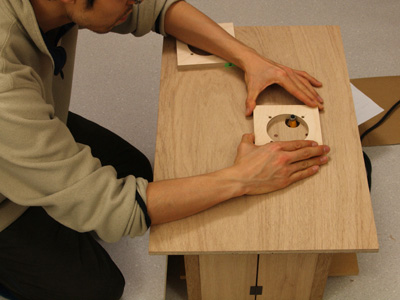

	The trimmer does work to apply the taper in the baffle continuously. Because this wants to do place decision of the nut with the fingernail in the beginning, only the position of the hole previously made for the unit is decided. The photograph is new FE-88ES obtained by the auction.
16

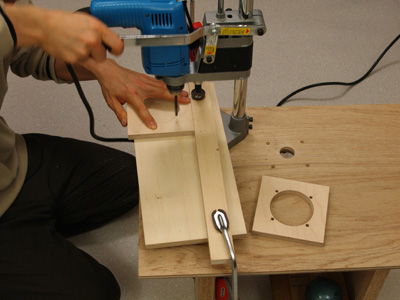

	The hole is made for the unit with the simple type desk-top ball board. To puncture the very limit of the circumference, eight-centimeter unit takes care with considerably.

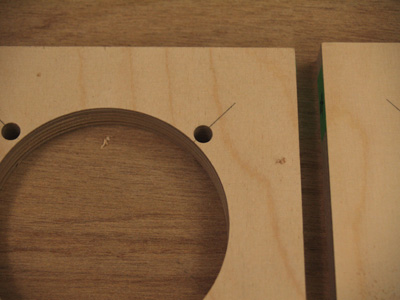

17
	The hole opened well. It is in work to apply the taper because the position of the nut with packing was decided by this. To prevent the pipe resonance sound, applying the taper :. The taper is applied to the baffle in detail.
18

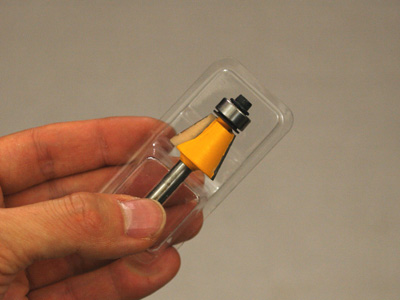

	Here handles the trimmer and the trimmer table this time. The bit used is a bit of this shape. It is called the chamfering bit with [kasa].
19
	The bit is set in the trimmer stand.
20

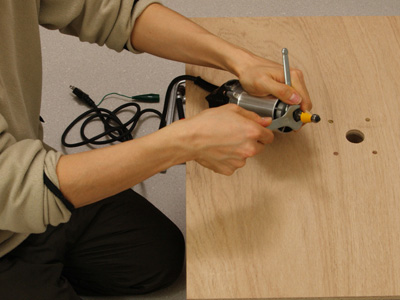

	It works because the sending stick of the trimmer table is removed, the blade is bared, and this work is done considerably dangerous. Please do not mimic a person not confident. It does noting not shaving off to the position in which the nut with the fingernail is installed while confirming it by eyes.
