Production 1 of D-88 super-flamingo

1

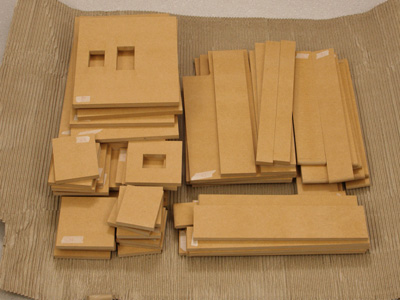

	The testing is scheduled the confirmation of the difference of the making ..quite similar one.. sound as one of the experiments this time with the [finrandoba-chi] plywood and the MDF plywood. The left of the photograph is MDF plywood.
2
	The photograph is [finrandoba-chi] plywood. All of the two speakers are made excluding unlike the board material at identical terms.
3
	How to make introduces [finrandoba-chi] making it. [Ba-chi] (birch) is heavily heavy though it does. It is 24.4kg only in the board.
4
	Whether accuracy has gone out to the plywood first cut is checked by using the scale and [sukoya]. It is perfect accuracy. There are actually 1 and a point that has been intentionally changed by 2mm from Nagaoka [tetsuotoko] teacher's drawing this time. The purpose is to often have externals though not influenced the sound road structure at all.
5
	First of all, all the numbers are shaken to the quality of timber used part. This work raises the mistake of bonding and the efficiency of the prevention work is raised. When the clerk makes this a request when the board is ordered, the time done for myself can be saved.
6
	Settle continuously. Because the sound road part disappears almost excluding open regio oralis of the horn, the mark is put to the sound road part bonded with the felt-tipped marker of narrowing like being comprehensible. The photograph is a place where the same length is taken at a time by the use of [kehiki].
7
	Efficiency goes up because it can save the time measured on the scale whenever assembling it when it is possible to settle beforehand.
8
	The self-made trimmer table completed last month is set.
9
	It is strategic though it is specified for the sound road part part to apply R in super-Swan to which the trimmer does it at a time. Up to now..make..Swan..this..part..light..chamfering..do..level..how..sound..influence..enjoy.All corners are cut like yen as shown in the photograph.
10
	The trimmer bit uses Bose side bit (R8).
