Production 7 of D-88 super-flamingo

61

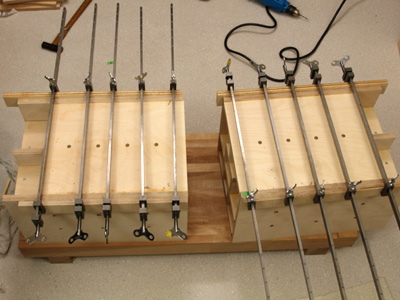

	Bonding of 12 (backboard).
62

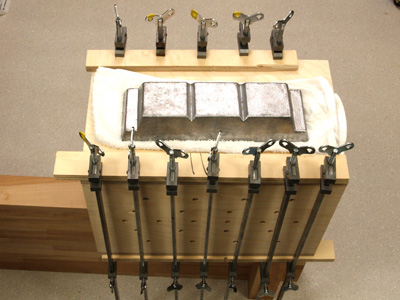

	Bonding of 14(In view of in front of, right board).
63
	Bonding of 15 (bottom plate)   It describes in detail because it is similar at the time of bonding of the [koreha] top board. Work till then was perfect if there was not shaking at all when the board first bonded was put up. However, the by far is sure shortly to have gone out in impossibility of the fact that here is a perfect realistically plane. Correcting it by using the plane and paper is good.
64

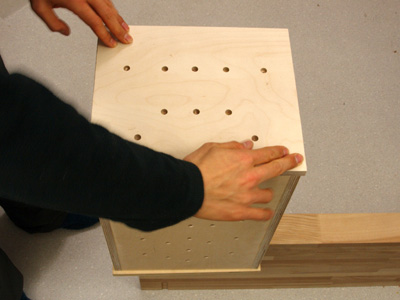

	It is checked whether it actually appropriates before the bottom plate is bonded and there is shaking.
65

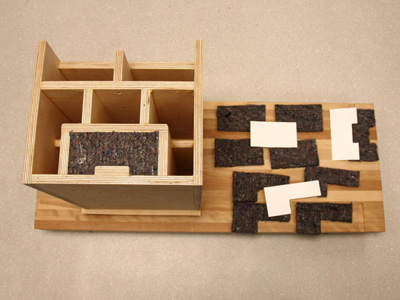

	You should have put it on the tip of only the part where the felt exists in the photograph because it is serious when putting it when the felt is put.  It has a hard time very much when the bottom plate is put on in all. The felt cuts the type with paper making it as shown in the photograph. It cuts well if it does with scissors for sewing.
66

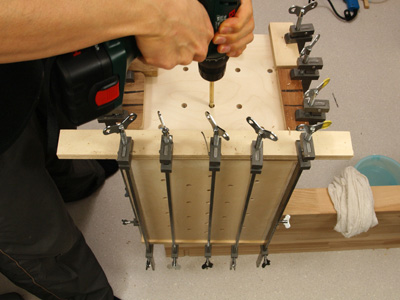

	It is surely joined that 16 edge [ganede] pressing + doesn't attach easily with the machine screw, and to do the space in an internal sound road part, does the machine screw stop.
67

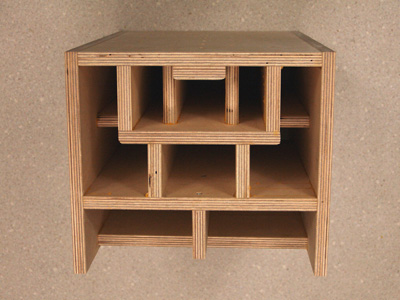

	Bonding of problem head. I assemble a body part and [nekku] and its usual head with the progress simultaneously because the problem is not here at all even if it makes it from the body part and the progress simultaneously.
68

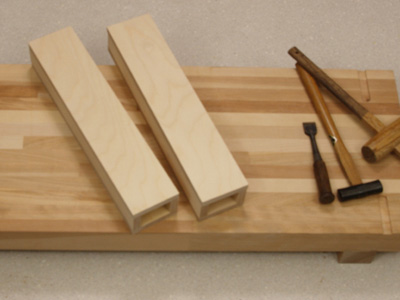

	Three of the 16+17+19+ are bonded to the riot. It to be able to be putting on of the edge pressure here by sleep and clamping for strength ten minutes, the machine screw is not used. R was bonded to L at the same time.
69

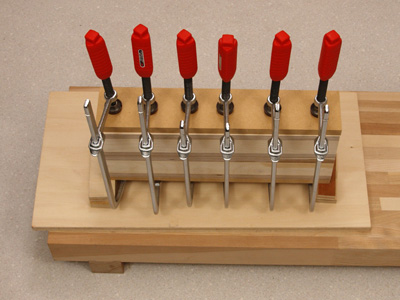

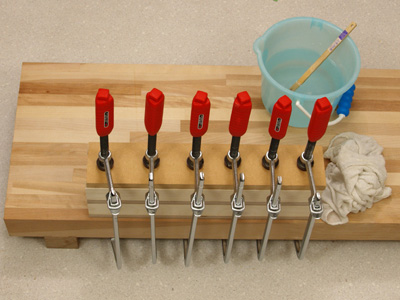

	L and R are matched and 18 is bonded at the same time. It becomes by the appropriating tree of the same size as six clamping like an easy press.
70

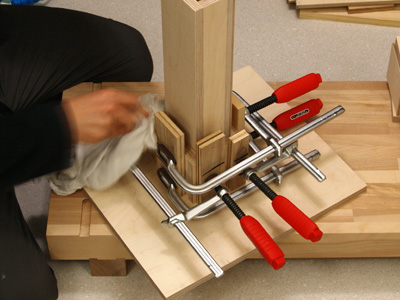

	27+28+29+30 is bonded. Here is hardened to [gachinko] by clamping. Joining beautifully unexpectedly is a difficult point.
