Speaker pursuit road > the example of producing Nagaoka [tetsuotoko] speaker top >
Production 2 of D-37
11 | |

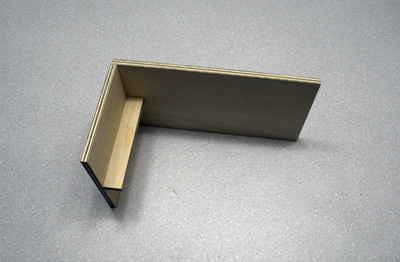

(7+8)+ (9+10) is bonded. Whether it is bonded squarely with [sukoya] is confirmed because this part is an important point where it touches the air room, and it bonds with the nail or the wood screw stoutly. | |
12 | |
(11+12)It drinks and parts are made. | |
13 | |

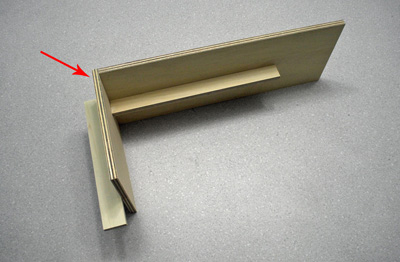

12 boards (board of reinforcement) are bonded. The board is appropriated from a red arrow, and it confirms whether to come to a fit position [sakai] of 11 and 12 boards. It will not go well when assembling it when there is a gap even a little. | |
14 | |

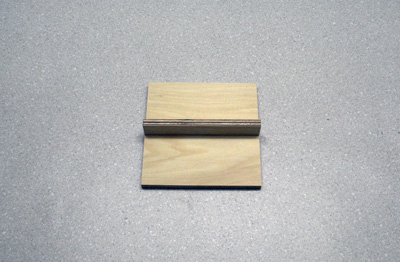

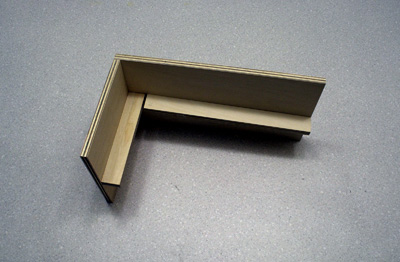

(13+14)It drinks and parts are made. | |
15 | |

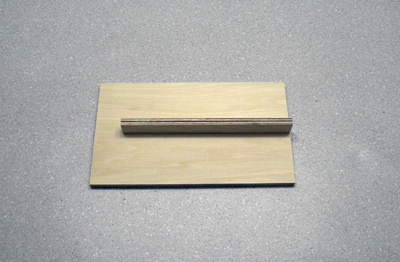

14 boards (board of reinforcement) are bonded. | |
16 | |

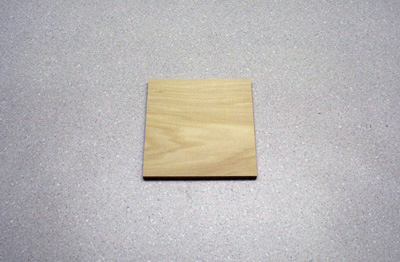

(19+20+21+22)It drinks and parts are made. 19 boards. | |
17 | |
20 boards (board of reinforcement) are bonded. | |
18 | |

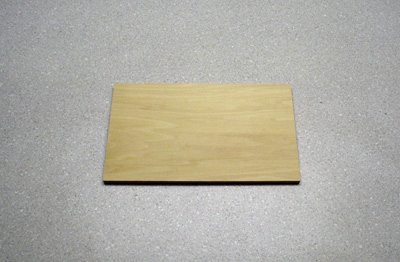

21 boards are bonded. | |
19 | |

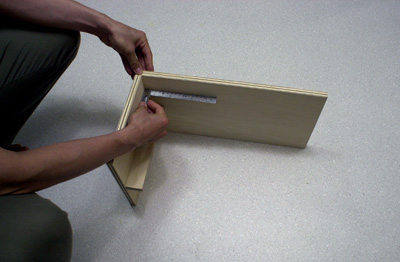

Place where right angle is confirmed with [sukoya]. | |
20 | |

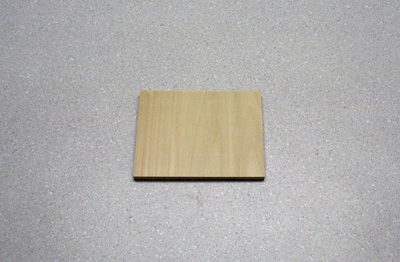

Board 22 of reinforcement is bonded. |
