D-101S super-Swan
| D-101S super-Swan Swan of Nagaoka speaker popular ultimate No 1 | |
| Basic data | |
| Cutting China plywood +1 ..price *.. | 30,325 yen |
| Unit two ..price *.. | (FE108E��)17,072 yen |
| Other necessity three ..cost *.. | 5,000 yen |
| Size |  1010mm in length �~370mm in width �~360mm in depth |
| Nagaoka [tetsuotoko] recommendation unit | FE108S |
| Alternative unit 1 | FE108E�� |
| Alternative unit 2 | FE108ES |
| Alternative unit 3 | FE108ES�U |
| Production four ..difficulty *.. | 4 |
| Reference drawing 1 | Latest speaker craft �B of Nagaoka [tetsuotoko] |
| Reference drawing 2 | Art �@ of Nagaoka [tetsuotoko] of original speaker design |
| Reference drawing 3 | Art �C of Nagaoka [tetsuotoko] of original speaker design |
| Reference drawing 4 | FM FAN92 year No.12 |
 Reference drawing 5 | Original speaker design art specialedition drawing [atsumahen] �T of Nagaoka [tetsuotoko] |
| Sound road data | Sound road data of Nagaoka backing loading |

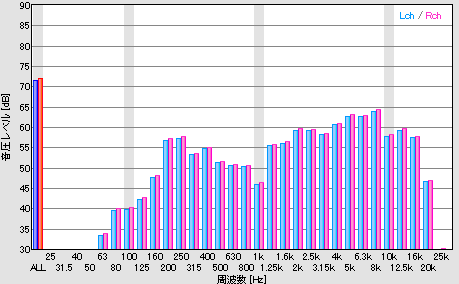

Frequency response | |
D-101s super-Swan equipped with FE108S D-101s super-Swan equipped with FE108E��  | |
Comment on Oyama | |
| The speaker called the highest masterpiece in Nagaoka master's speaker is this. The self-made mania will be regretted through life if it is never never heard that it doesn't become it if it is an audiophile. There are a lot of manias who use 108ES �U that evolved 108S now. When FE-108E�� is used, the Nagaoka master is described when you should use D101a. | |
- 1The plywood price is addition of the necessary plywood price (China plywood) and the cutting price referring to the price list of the Tokyu Hands Shinjuku branch. Please think to the end at the reference level (As of October, 2006).
- 2The unit price is an amount of money for the case with a Nagaoka [tetsuotoko] recommendation unit. The one that the price in the Koizumi wireless was examined on the net is a reference. Please think at the reference level because it is the one with the possibility of the change of the price etc. (As of October, 2006).
- 3It is assumed 5000 yen with other cost chiefly adding up the coil capacitor, the woodwork bond, [onimenatto], and the woodwork tool, etc. for a terminal, internal wiring, the [fasuton] terminal, and the network.
- 4It divides into five stages, and it is a production difficulty that it is the easiest and five is most difficult of one. It is subjective what written based on the complexity and the experience of the size and the structure of the speaker that Oyama actually made.
The subsequent page is masterpiece D-10 Buckie of the small backing loading horn.
